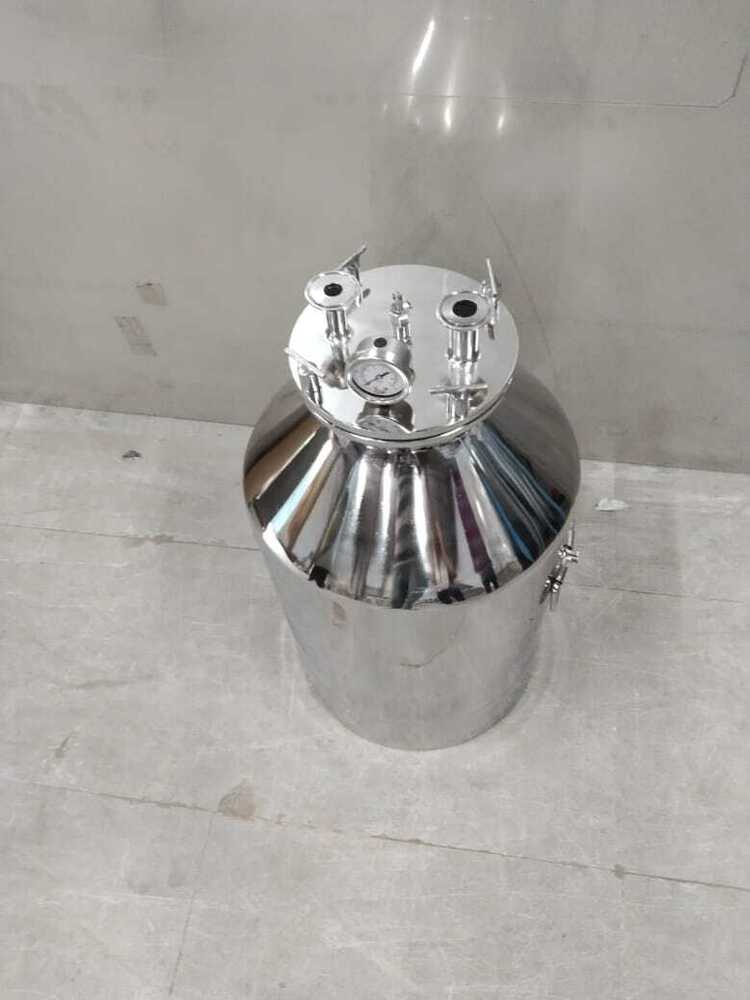

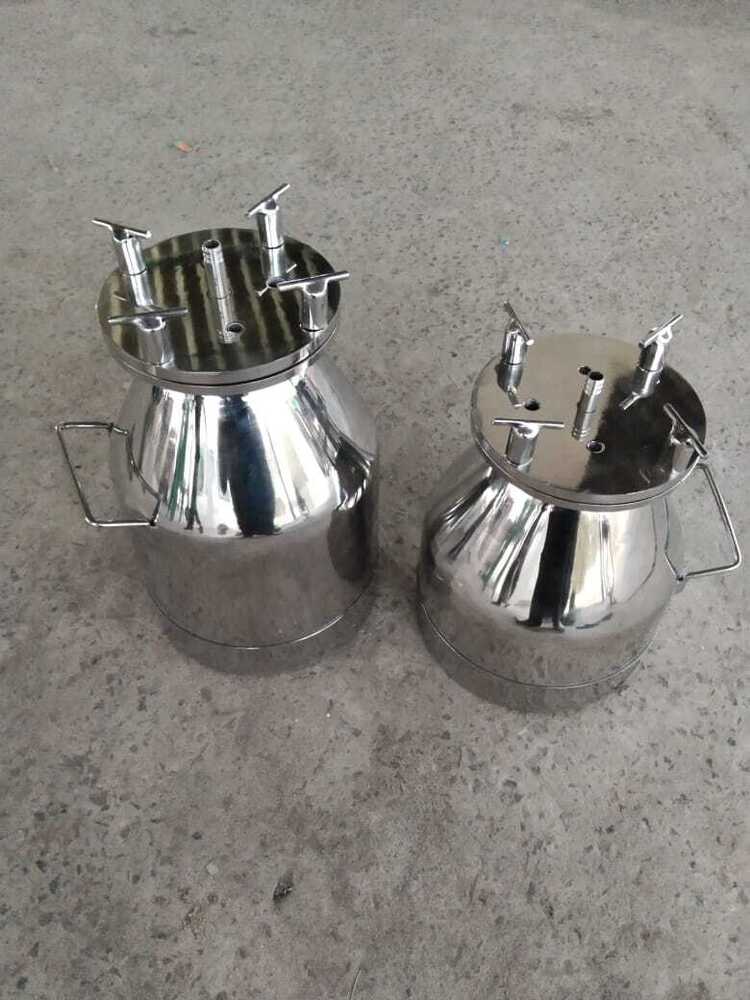

5 To 200litre Stainless Steel Pressure Vessel

Send Inquiry

Request To Call Back

5 To 200litre Stainless Steel Pressure Vessel

Get a Price/Quote

MOQ : 25 Pieces

5 To 200litre Stainless Steel Pressure Vessel Specification

Hardness
160-240 HB (Brinell, depending on SS grade)

Material Composition %
SS304: Fe bal, Cr 18-20%, Ni 8-10.5%; SS316: Fe bal, Cr 16-18%, Ni 10-14%, Mo 2-3%

Coating Type
No additional coating by default; polished surface finish

Size
5 to 200 litre capacity

Diameter
100 mm to 600 mm (as per capacity)

Recyclable
Yes

Corrosion Resistant
Yes (excellent, especially for SS316/SS316L)

Product Form
Pressure Vessel

Tensile Strength
515-620 MPa (Varies by grade)

Heat Resistance
Yes

Product Name
5 To 200litre Stainless Steel Pressure Vessel

Steel Type
Stainless Steel

Steel Product Type
Pressure Vessel

Grade
SS304 / SS316 / SS316L

Thickness
3 mm to 8 mm

Shape
Cylindrical or Custom

Steel Standard
ASTM A240 / AISI

Surface
Polished / Mirror / Matt

Composition
Mainly Iron, Chromium, Nickel (with variations based on SS grade)

Application
Pharmaceutical, Chemical, Food & Beverage, Laboratory, Industrial Processing

Dimension (L*W*H)
Customizable as per capacity (5-200 litre); typical: 400mm x 400mm x 700mm (for 50L vessel)

Weight
Varies with size; approx. 10 to 180 kg

Color
Silver / Metallic

Material Grade
SS304, SS316, SS316L

Finish Type
Polished / Mirror / Matt

Usage
Storage and pressurization of liquids/gases in hygienic and industrial processes

Accessories
Pressure gauge, safety valve, sampling valve, vent, level indicator (optional)

Quality Assurance
100% Quality tested as per industry standards

Leakproof Design
Yes

Manhole & Outlet
Hygienic manhole and bottom/side outlet

Cleaning
CIP/SIP compatible

Mounting Type
Leg Supported / Skid Mounted / Trolley Mounted

Max Working Pressure
Standard up to 8 bar (can be customized as per requirement)

Weld Type
TIG welded with 100% radiography (on request)

Sealing Gasket Material
Silicone / EPDM / PTFE

Available With Jacket
Yes (optional for heating or cooling applications)

Connections
Tri-clamp / Flanged / Threaded as per application

Customizable Features
Agitator, heating/cooling jacket, sight glass, additional inlet/outlet ports

Operating Temperature
-20C to +200C

Test Pressure
1.5 times the design pressure (factory hydrotested)

5 To 200litre Stainless Steel Pressure Vessel Trade Information

Minimum Order Quantity
25 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About 5 To 200litre Stainless Steel Pressure Vessel

Get the inestimable brilliance of the 5 To 200litre Stainless Steel Pressure Vessel-highly recommended for pharmaceutical, chemical, food & beverage, and laboratory use. With a radiant, polished finish and offered in SS304, SS316, and SS316L, it boasts a leakproof design and exceptional corrosion resistance. Outfitted with hygienic manhole, customizable connections, and versatile mounting options, this vessel ensures safe storage and pressurization. Each unit is rigorously factory-tested and features brilliant, user-oriented add-ons for optimal performance. Offer your processes unmatched reliability and quality assurance with this brilliant vessel.

Efficient Operation & Distinctive Features

For effective use, ensure all sanitary connections-tri-clamp, flanged, or threaded-are sealed with a selected gasket (Silicone, EPDM, PTFE). The vessel's TIG-welded, polished surface supports CIP/SIP cleaning for stringent hygiene. With user-friendly manholes and outlets, applications range from liquid storage to pressurization in pharmaceutical labs, food, and industrial processes. The mounting style-leg, skid, or trolley-allows easy setup; optional accessories like pressure, safety, and sampling valves add flexibility to every process.

Domestic Market Solutions & Sample Accessibility

This vessel is widely available across India's main domestic markets. For a nominal outlay, samples can be arranged under our streamlined sample policy, ensuring you inspect quality before bulk shipment. Upon confirmed order and fulfillment of policy terms, the vessel will be readied for prompt arrival at your specified location, ensuring expedient delivery. Our dedicated support guarantees that all questions regarding outlay, shipment schedule, and arrival tracking are addressed efficiently to enhance your procurement experience.

FAQ's of 5 To 200litre Stainless Steel Pressure Vessel:

Q: How do I select the correct pressure vessel size for my application?

A: Determine your process requirements, such as the volume to be stored or pressurized and the available installation space. The vessel comes in sizes ranging from 5 to 200 litres and can be customized to fit your application's needs.

Q: What are the available features for hygienic or industrial processes?

A: Standard features include a hygienic manhole, polished finish, leakproof design, CIP/SIP compatibility, and customized mounting. Optional accessories like pressure gauges, safety valves, and sight glass are available according to application method or industry requirements.

Q: Where are these stainless steel pressure vessels commonly used?

A: These vessels are recommended for pharmaceutical manufacturing, chemical storage, food & beverage production, laboratory settings, and diverse industrial processing environments due to their excellent corrosion resistance and customizable features.

Q: What is the process for ordering a customized pressure vessel?

A: Contact your manufacturer or supplier with your detailed capacity, connection, mounting, and accessory specifications. After sample approval and policy confirmation, the vessel will be manufactured, tested, and shipped as scheduled.

Q: What are the benefits of a polished or mirror surface finish?

A: A polished or mirror finish ensures ease of cleaning, prevents particle accumulation, and is highly recommended for hygienic processes, helping maintain product purity and compliance with industry standards.
